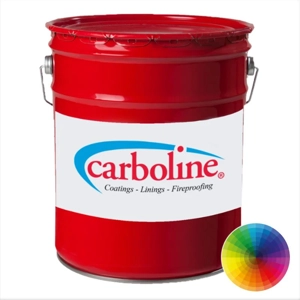

Carboline Carboguard 893 SG 5L
Carboline Carboguard 893 SG 5L
Versatile corrosion resistant coating. Used either as a primer, intermediate coat, or self-priming finish over steel and zinc primers. Carboline glass flake additive may be added to improve performance including internal strength, hardness, impact, and abrasion resistance. May be topcoated with itself, or a broad variety of high performance finish coats. Product also has surface tolerant properties. Use optional (LT) cure for low temperature cure down to 35°F (1.7°C).
Product Features
• Ready to apply after mixing; no sweat-in time or thinning required.
• Economical fit for use epoxy
• Available in a variety of rapid tint colors
• Attractive low sheen for tank exteriors
• Used as a primer, intermediate, or finish coat
• Power tool cleaned surfaces acceptable
• Optional low temperature (LT) cure Part B
• VOC compliant to current AIM regulations
| Color | 0700 (Grey) and 0800 (White) A wide range of colors is available upon request using Carboline’s Rapid Tint System (RTS). Contact your Carboline Representative for availability. |
| Finish | Eggshell |
| Primer | Self-priming. May be applied over zinc rich primers. A mist coat may be required to minimize bubbling over inorganic zinc rich primers. |
| Dry Film Thickness | 3 - 6 mils (76 - 152 microns) per coat 3-5 mils (75-125 microns) can be used as a primer or intermediate coat. Two coats may be used direct-to-metal. 4-6 mils (100-150 microns) can be used as a finish coat over a primer. Do not exceed 10 mils (250 microns) in a single coat. Excessive film thickness over inorganic zincs may increase damage during shipping or erection. |
| Solids Content | By Volume 63% +/- 2% |
| Theoretical Coverage Rate | 1011 ft²/gal at 1.0 mils (24.8 m²/l at 25 microns) 337 ft²/gal at 3.0 mils (8.3 m²/l at 75 microns) 168 ft²/gal at 6.0 mils (4.1 m²/l at 150 microns) Allow for loss in mixing and application. |
| VOC Values | Thinner 10 : 15 oz./gal: 2.95 lbs/gal (354 g/l) Thinner 243 E : 16 oz/gal: 2.70 lbs./gal (324 g/l) Thinner 236 E : 16 oz/gal: 2.70 lbs./gal (324 g/l) Thinner 229 : 16 oz/gal: 2.97 lbs/gal (356 g/l) Thinner 33 : 16 oz/gal: 2.98 lbs./gal (357 g/l) As Supplied : 2.70 lbs./gal (324 g/l) Calculated. These are nominal values and may vary slightly with color. |
| Dry Temp. Resistance | Continuous: 300°F (149°C) Prolonged exposure above 200 °F (93 °C) may cause discoloration (darkening), but will not affect performance. |
| Limitations | Epoxies may lose gloss, discolor and chalk when exposed to sunlight. LT Cure will cause additional discoloration as it weathers and/or ages. Not recommended for immersion service. |
| Topcoats | May be coated with Acrylics, Epoxies, Alkyds, or Polyurethanes depending on exposure and need. |
Data Sheets
Carboguard 893 SG PDS
Carboguard 893 SG Aluminum SDS Part A
Carboguard 893 SG SDS Part A
Carboguard 893 SG SDS Part B
Carboguard 893 Environmental Product Declaration (EPD)
Carboguard 893 SG Product Flyer
Carboguard 893 SG VOC Emissions Test Certificate
