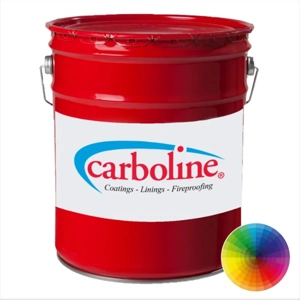

Carboline Carbothane 133 HB 5L Kit
Carboline Carbothane 133 HB 5L Kit
Carbothane 133 HB High build, low sheen finish that has excellent resistance to corrosion, chemicals and abrasion. Suitable for application over a number of Carboline primers and intermediates, this material provides very good weathering performance in a broad range of colors.
Product Features
- Outstanding performance properties in both mild and aggressive environments
- High build; suitable for many two-coat systems
- Suitable for application direct to inorganic zincs
- Application by spray, brush or roller
- Indefinite recoatability
- VOC compliant to current AIM regulations
| Color | 1864 (White), 6666 (Safety Yellow), 5555 (Safety Red) , C703 (Grey), C705 (Light Grey), C900 (Black). Other colors are available on request. Contact your Carboline Representative for availability |
| Finish | Satin |
| Primer | Refer to Substrates & Surface Preparation. Topcoat with Carbothane ® Clear Coat when required. |
| Dry Film Thickness | 3 - 5 mils (76 - 127 microns) per coat Dry film thickness in excess of 7 mils (175 microns) per coat is not recommended. |
| Solids Content | By Volume 57% +/- 2% |
| Theoretical Coverage Rate |
914 ft²/gal at 1.0 mils (22.4 m²/l at 25 microns) 305 ft²/gal at 3.0 mils (7.5 m²/l at 75 microns) 183 ft²/gal at 5.0 mils (4.5 m²/l at 125 microns) Allow for loss in mixing and application. |
| VOC Values | Thinner 25 : 11 oz/gal: 3.5 lbs./gal (420 g/l) Thinner 25 : 18 oz/gal: 3.7 lbs./gal (449 g/l) As Supplied : 3.2 lbs./gal (383 g/l) Thinner 214 : 3.3 lbs/gal (403 g/l) Thinner 241 : 3.5 lbs/gal (423 g/l) 1.5 oz/gal of Additive 101 adds 0.08 lbs/gal (10 g/l). These are nominal values and may vary slightly with color. |
| Dry Temp. Resistance | Continuous: 300°F (149°C) Some discoloration and loss of gloss may be experienced at elevated temperatures. |
| Limitations | *The alignment of aluminum flakes in aluminum-filled finishes is very dependent on application conditions and techniques. Care must be taken to keep conditions as constant as possible to reduce variations in final appearance. It is also advisable to work from a single batch of material since variations can occur from batch to batch. |
| General | Surfaces must be clean and dry. Employ adequate methods to remove dirt, dust, oil and all other contaminants that could interfere with adhesion of the coating. Refer to the specific primer’s Product Data Sheet for detailed requirements of the specified primer. |
Data Sheets
Carbothane 133 HB PDS
Carbothane 133 HB - Urethane Converter 133 SDS Part B
Carbothane 133 HB Metallic SDS Part A
Carbothane 133 HB SDS Part A
Carbothane 133 HB Product Flyer
The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.
Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
