FIREFLY Fire Collar (FCR) Summary

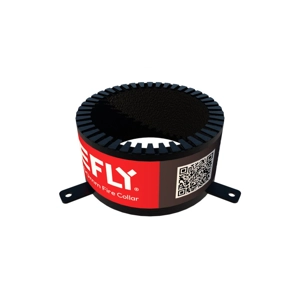

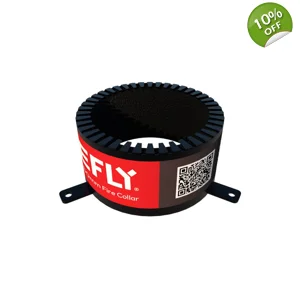

FIREFLY Fire Collar (FCR)

FIREFLY Fire Collar (FCR) is a penetration sealing device that contains our in-house manufactured flexible intumescent high-performance graphite housed in a corrosion resistant powder coated steel shell. It is designed to provide high volume expansion and create a pressure seal during fire to combustible pipes that passes through floors and walls. To be used in conjunction with Firefly flexible barriers and the FB180 Batt Wall and Floor system.



USE AREAS
FIREFLY Fire Collar (FCR)’s primary purpose is to protect combustible pipes and maintain fire resistance as part of a tested and approved passive fire protection system. Available in 6 sizes 50mm to 160mm.

  • Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems
  • PVCu pipes
  • PP pipes
  • PE-X pipes
  • HDPE/LDPE pipes
  • Air conditioning pipes
  • Insulated copper / metal pipes (Elastomeric, Phenolic,
    Glasswool, Nitrile, PE)
  • ABS
  • Concrete and masonry walls and floors
  • Double layer flexible fire rated partition walls



KEY BENEFITS

  • Provides fire resistance up to 4 hours
  • Tested to BS EN 1366-3:2021 fire resistance penetration seals
  • Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems
  • Easy to install
  • High end, fast expanding graphite material
  • Supported by a full range of FIREFLY ancillary products (intumescent acrylic, high expansion graphite, pigtail screws and fixings) to provide the ability to install a fully tested system.



FIREFLY Fire Collar (FCR)

TESTING
BS EN 1366-3:2021


FIRE RATING
Up to 4 hours


APPLICATION

  • Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems, up to 160mm
  • Should be used where a combustible pipe penetrates a fire rated wall or floor
  • Please refer to installation drawings on our website


SIZES

50mm, 60mm, 75mm 90mm, 110mm, 160mm


FINISH / COLOUR

Coated Steel Black


DIMENSIONS
FCR50-FCR110: 30mm height

FCR160: 40mm height


PRODUCT CODES
FCR50, FCR60, FCR75, FCR90, FCR110, FCR160


ADDITIONAL DATA

  • Store in a dry place, protected from frost
  • Application temperature -5 to +40 degrees centigrade
  • Activation temperature 150 degrees centigrade


LIMITATIONS
Not suitable for use with cPVC pipes



Product Data Sheet links

Firefly Fire Collar (FCR) Data Sheet

Firefly Product Summery

Firefly Ancillaries and Fixings

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
