ARRONE mechanical push button lock:

Function: Lever handle operation, code free
Fully reversible return to door lever
12 digit pin tumbler system
Spindle pack supplied
Suitable for internal or external use
Supplied with rubber backing plate for protection from external weather and torx anti tamper fixings
Suitable for timber or metal doors from 33 mm to 55 mm thick
Testing: BS EN 1634-1. Assessed for use on 30 and 60 minute timber fire doors and 240 minute steel fire doors

Specifications :

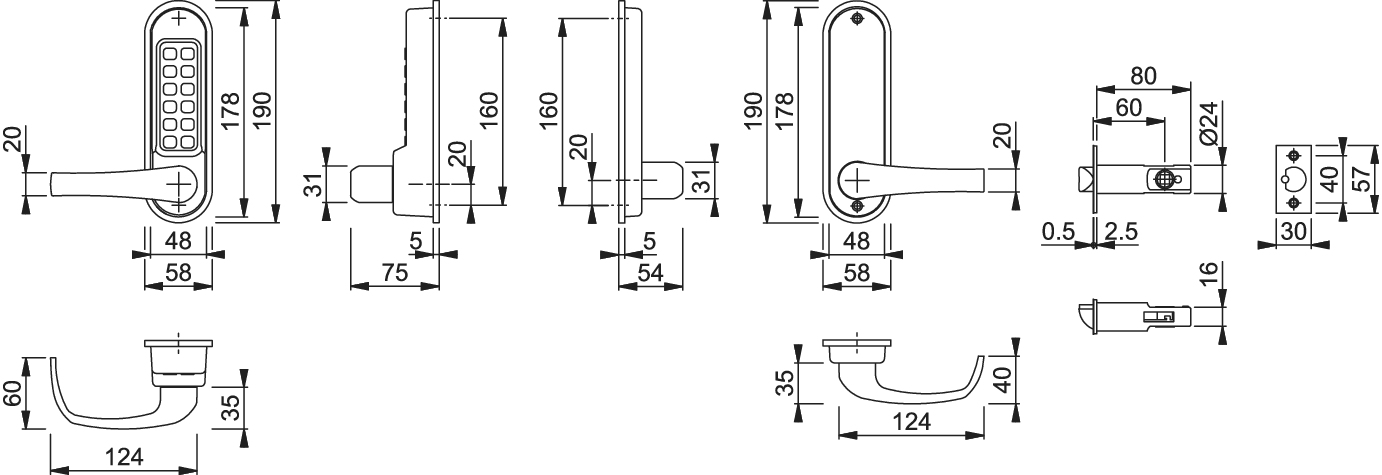

Dimensions : 178X48 mm
Door Thickness : 33 - 55 mm
Fixings : Timber Door
Locking Point : Tubular Latch/Anti Thrust Snib
Special Function : Code Free Entry Function
Backset : 60 mm
Finish : Matt Chrome
Commodity Class : Locks/Latches Digital Lock
Door Type : Wooden Door
Door Thickness : 33-55 mm

Dtata Sheets

Product data sheets

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
