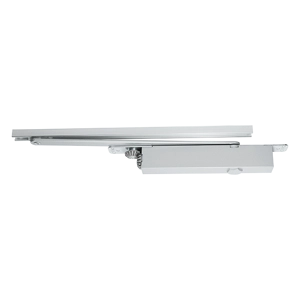

ARRONE overhead door closing device:

• Power Size: 2 to 4 Adjustable By Spring Tension
• Function: Closing, Latching, Cushion Stop
• Cover: No Cover
• Maximum Door Width: 1,100 mm
• Maximum Door Weight: 80 kg
• Arm Application: Door Mount Concealed, Transom Mount Concealed
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull side, transom mount pull side: 3 | 8 | 4/2 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minute on steel fire doors.
• CE Marked: AD5071, UKCA Marked AD7687
• Certifire Approved: CF5181, CE DOP: HUK0026, UKCA DOP: HUK0026-UK
• The AR7383 can satisfy the opening force recommendations of BS 8300 and ADM when fitted to a door with minimum width of 777 mm (standard mount) and 796 mm (transom mount) according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.
