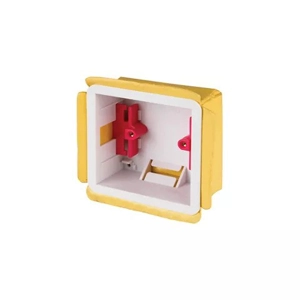

EVERBUILD® FIRESPAN® Intumescent Pads are designed to be used on the inside or outside of electrical socket boxes to maintain fire and smoke barrier where service holes are cut into dry lining and all types of fire rated boarding. High tack adhesion, pliable and mouldable, self-bonding.

• Dry Lining systems.


• Around metal or plastic socket boxes.


• Fire rated partition walls.


Advantages

• Maintains a fire and smoke barrier around sockets in drylining systems.


• Excellent acoustic properties.


• High tack adhesion, pliable and mouldable with excellent self bonding properties.


• Preformed shape to fit most common socket boxes.

Intumescing Temperature Approx 250 °C Integrity / Insulation 2 Hours^* *up to 2 hour fire rating in certain configurations.

Colour

Product Information

Chemical Base

Shelf Life

Storage Conditions

Density

1.55 - 1.60 g/cm³

Technical Information

Resistance to fire

Test Results: (Tested to EN1366-3) WF Report No. 388629A Issue 2

* The test duration. The test was discontinued after a period of 132 minutes.


Specimens F2 and G2 unable to be given insulation value due to being installed on the exposed face.

Specimens F1, F2, G1 and G2, as described are not fully in accordance with the requirements of BS EN 1366-3:2009, because they are only partial penetrating, however, if the specimens were to be assessed for integrity and insulation criteria from BS EN 1366-3:2009 the results could be expressed as above.

Data Sheets

Product Data Sheet

Packaging

Single Socket - 4mm x 170mm x 170mm

Double Socket - 4mm x 230mm x 170mm

Please Note: This product is available on a 3-5 working days delivery option only.
