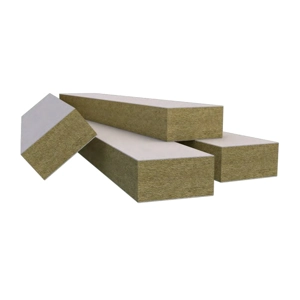

Double coated linear joint seals

Size: 100 x 200 x 1200mm

Please Note: this item may take 7-10 working days for delivery.

Part of the ROCKWOOL FIREPRO range, FIREPRO SoftSeal System incorporates a product specifically designed to accommodate movement within buildings in linear joint seals and penetration seals.

Advantages

• Suitable for penetration and linear joints
• Acoustically absorbent
• CE Marked
• Easy to handle and install
• Both vertical and horizontal joint applications
• Tested for durability to current EU guidelines
• Supplied pre-coated

Penetration seals

Description

As part of the comprehensive ROCKWOOL FIREPRO range of fire protection products, FIREPRO SoftSeal System incorporates a product specifically designed to apply to penetration seals within buildings, where the design needs to accommodate movement in the services.

The FIREPRO SoftSeal System can be installed into apertures within masonry or drywall partitions as a standalone seal for openings up to 1000mm x 1000mm or as part of a larger ROCKWOOL Ablative Coated Batt seal (2 layers) to accommodate movement of services. *

A FIREPRO SoftSeal Coated Strip comprises a low-density stone wool SoftSeal Lamella Strip, pre-coated with SoftSeal Flexible Coating.


The FIREPRO SoftSeal Coated Strip is supplied in strips 1200mm x 200mm x 100mm. The FIREPRO SoftSeal flexible Coating is also available in 5L, 10L and 20L tubs to enable site repairs to FIREPRO SoftSeal Coated Strips and FIREPRO SoftSeal Linear Joint Seals, that may have been damaged during installation.

To complement the FIREPRO SoftSeal Coated Strip, ROCKWOOL also supplies FIREPRO SoftSeal High Expansion Intumescent Sealant (310ml) and FIREPRO SoftSeal Flexible Acoustic Intumescent Sealant (310ml).

FIREPRO SoftSeal Coated Strip is intended to reinstate the fire resistance, acoustic and air seal performances of concrete floors, masonry walls and dry wall systems when voids have been created for the passage of services. This includes pipes made of steel, cast iron, copper, polypropylene (PP), high density polythene (HDPE), PVC and

ABS along with all sheathed cables up to 80mm and supported cable bundles up to 100mm.

*Higher levels of service movement may be accommodated by installing the product under higher compression rates, please contact ROCKWOOL Technical Solutions for guidance.

Performance

Fire performance

ROCKWOOL FIREPRO SoftSeal Coated Strip has been tested to the dedicated fire resistance standard for penetration seals BS EN1366-3 and shown to provide up to 2 hours fire performance (EI20).

Standard details, showing the full scope of fire performance, are available from the Technical Team.

FIREPRO SoftSeal Coated Strip fire resistance tests were conducted using FIREPRO SoftSeal Flexible Acoustic Intumescent Sealant and/or FIREPRO SoftSeal High Expansion Intumescent Sealant.

For vertical applications the FIREPRO SoftSeal Coated Strips are coated on both sides.

Movement

As part of the testing to BS EN 1366-4, FIREPRO SoftSeal was assessed for its movement capabilities, prior to conducting the fire test. The product was tested to accommodate movement (expansion and contraction) of +/-15%*.

*See ROCKWOOL standard details for specific Ablative Coated Batt sizes.

Acoustic performance

Tested to EN 10140 with the following results:

• Rw 30 dB: When installed with 100mm thick SoftSeal Batt
• Dn,e,w 40 dB: When installed with 100mm thick SoftSeal Batt

Water permeability

Tested to EN 1027 - No leakage observed up to 300Pa.

Air permeability

• Tested to EN 1026 up to 600Pa.
• Leakage at 50Pa - 0.1/1.4 m³/m²/h.

Technical information

Standards and approvals

FIREPRO SoftSeal has been tested and assessed to BS EN1366-3 2009 and classified to EN 13501-2.

FIREPRO SoftSeal Coated Strip System has been CE marked against ETAG026-2.

Product information

Property Description

Length 1200mm

Width 200mm

Thickness 100mm

Fire Resistance Up to 2 hours

Coating 2 sides

Density 80Kg/m³

Movement +/- 15%

Product Data Sheet
Data Sheet Links
Installation Sheet
Safety Data Sheet - Coating
Safety Data Sheet - Insulation
Technical Data Sheet
