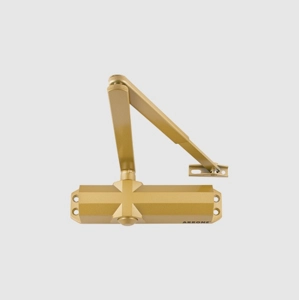

ARRONE door closing device:

Power size: 2 to 4 adjustable by template

Function: Closing, latching

Cover: no cover

Maximum door width: 1,100 mm (Fig 1), 950 mm (Fig 6 and Fig 61)

Maximum door weight: 80 kg (Fig 1), 60 kg (Fig 6 and Fig 61)

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

- Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3

- Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

CE Marked: AD0095, UKCA Marked: AD7696

Certifire approved: CF603, CE DOP: HUK0025, UKCA DOP: HUK0025-UK

Finish: gold

Maximum door width: 1100 mm

Power size: 2 to 4

Mechanism function: Template adjustment, closing/latching speed

Maximum door weight: 80 kg

Mechanism type: Rack & pinion

Door type: wooden door

Arm finish: gold

Fixings: Timber door

Type: mechanism only

Arm application: figure 1, 6 and 61

Mechanism dimensions and fixing centres: 219x53.4x45 mm; centres 202x19 mm

Opening Angle: max. 105° opening

Arm type: Scissor arm, fixed joint, flat form, adjustable
