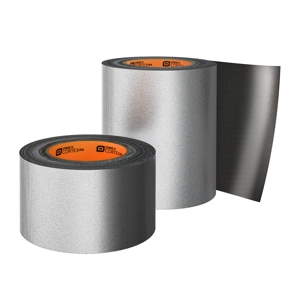

The OBEX CORTEX 0200FR Class A2 ISM (Interface Sealing Membrane) is the first and only ‘EPDM-alternative’ to achieve a fire classification of A2-s1,d0.  It also has full BBA approval and is perfectly suited for all window and façade sealing applications, particularly on relevant buildings above 18 metres in line with Approved Document B.

This quality membrane is used in conjunction with OBEX CORTEX 0210FR Class A2 Paste Adhesive, making it the first and only Class A sealing system for windows and facades.  This system is the preferred choice for construction professionals who demand the best.

Product Specs

Widths : 50mm - 1500mm
Length : 20m
Thickness : 0.4mm

Technical Specs

Harmonised Standard : EN 13984
Fire Classification | EN 13501-1 : A2-s1,d0
Watertightness | EN 1928 : Pass – 2 kPa for 24 hours
Sd value | EN 1931 : 0.28m
Tensile Strength | EN 12311-2 : Longitudinal - 3198 N | Transverse - 2035 N
Air Tightness | EN 12114 : <0.1m³

Typical Uses

• Weather & airtight seals around windows, doors and curtain walling systems
• Weather & airtight seals from SFS sections to the concrete frame
• Top of parapet walls
• Balcony waterproofing
• Many other applications where a robust Class A EPDM-alternative is required




Important: Ensure membrane is with the silver face to the substrate and the black face exposed.
