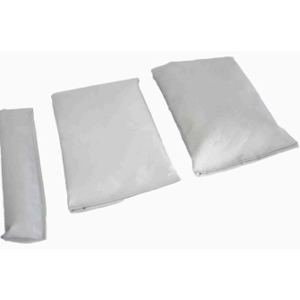

Sausage - 330x50x20mm - 50g  Prevent the spread of fire where cables and other non-combustible services penetrate fire compartment walls.

• Fire Tested to BS EN1366-3-2009
• To reinstate fire resistance through walls
• Easy to install and remove
• Available in 3 different sizes
• Remains flexible between -20°C to +130°C
• Moisture resistant lining
• Trunking Areas of Use:
• Directly through flexible walls
• Directly through Rigid walls

Colour: Silver
Packaging: Boxed
Product Code(s): QFP1, QFP2, QFP3
Associated Products: QuelStop Acrylic Sealant
Fire resistance: Up to 60 mins integrity
Shelf Life: N/A if stored in cool, dry place

Regulations

Building Regulations impose limitations on all services passing through fire compartment walls and floors. Intumescent Fire Pillows prevent the spread of fire where cables and other non-combustible services penetrate fire compartment walls.

Composition

Quelfire Intumescent Fire Pillows consist of sealed fabric pillow filled with a high expansion intumescent material. When subjected to heat the intumescent material reacts producing a barrier of carbonaceous char or foam which provides an effective insulating plug which provides an effective seal against flames and hot gases.

Available Sizes Product

Performance Table - 1m² Opening

Installation Information

Application

Quelfire Intumescent Fire Pillows can be used inside steel cable trunking up to 150x150mm where they penetrate fire compartment walls.

They are available in 3 different sizes allowing flexibility in choice to ensure that the trunking is fully sealed even with varying number of cables in them. The cables should not take up more than 60% of the available space inside the trunking and the Pillows should then be installed lengthways, centrally positioned within the wall, filling the remaining space.

Typical Installation Detail – Directly through walls

Ensure the supporting construction, aperture, services and site conditions are within the tested scope of application.

Apertures in the wall should be cut as close as possible to the size of the steel trunking – ideally with a maximum 10mm annulus but in any case not exceeding the maximum sizes given below:

Ensure the inside of the trunking and cables is clean and clear of loose dust particles.

Install the QuelStop Intumescent Fire Pillows lengthways within the trunking and in such a way that all joints are staggered in each layer and all gaps within the steel trunking system are filled in a manner that ensures a tight compression fit. They should be finally positioned so that they are centrally positioned within the fire compartment wall.

Fill the void around the trunking, using an appropriate backing material such as PE backing rod, glass wool, stone wool or ceramic wool and then apply QuelStop Intumescent Acrylic Sealant to a minimum depth of 10mm.

Product Data Sheet
Intumescent Fire Pillow Data Sheet
Intumescent Fire Pillow Safety Data Sheet

Standard Installation Detail

QFP-FW75-07 - Cable Trunking penetrating a flexible or rigid wall

QB-FW75-P-13 - Cable Trunking penetrating a flexible or rigid wall (QFP)

QB-FW100-D-13 - Cable Trunking penetrating a flexible or rigid wall (QFP)

QFP-RW150-01 - Cable penetrating a rigid wall

For further information, please call us on 02476 422200.

All orders are usually despatched within 24 hours of receiving cleared payment (Mon–Fri).

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
