Specification

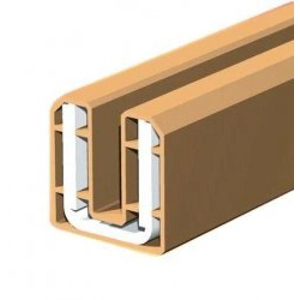

Comprises a U-shaped PVC profile containing an intumescent core and an intumescent liner, and beads of wood or metal. Tested with a range of glass types.

System-90 PLUS is designed for 60 minute fire-resistant doors and screens. Contact our Technical Services team for more information. When using a suitable door and screen construction, (such as the Georgia-Pacific system for high performance fire door assemblies) it provides 90 minute fire resistance. 120 minute fire resistance can be attained when a suitable door only construction is used.

Application

Glazed apertures in fire resisting doors and screens

Glass Thickness
Suitable for use only with 6mm Georgian wired glass, Pyran-S® or 5mm Firelite®


Fixing

Held by glass

Performance

Fire tested to BS 476-22
Certifire CF185

Material

Sodium Silicate intumescent

Length(s) (mm)

2100mm - Standard Lengths

Size(s) (mm)

27×6mm

Colour(s)

Black / Dark Brown / White / Light Brown as standard colours

Product Data Sheet Links
Data Sheet
