Use Areas

Commonly installed to provide fire protection below mezzanine floors and balcony structures.

Also used in conjunction with the relevant Vertical barrier to create the Horizontal element of protected zones.

Utilised within roof voids and lofts to achieve fire-rated compartmentation lines throughout a building, in applications including social housing, care homes, healthcare and industrial/commercial buildings.

Construction

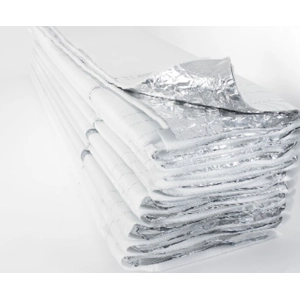

FIREFLY Apollo Horizontal 30:30 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance.

Key Benefits

FIREFLY Apollo Horizontal 30:30 provides a combined 30 minutes Integrity and 30 minutes Insulation, tested in a Horizontal application specifically.

Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage.

Lightweight, flexible, easy to handle and cut

Installer-friendly fire barrier system

Fully tested to BS476 and independently certified by IFCC/Kiwa

FIREFLY Apollo Horizontal 30:30 is supported by a full range of FIREFLY ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system.

Certification

Third party certified by IFCC/Kiwa. Certificate number: IFCC 1531

Application

Horizontal use only (see Apollo Lite 30:30 for vertical alternative)

Properties

Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape

Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration

Min Thickness: 10mm

Specifications

Exceeds 30 minutes Integrity and 30 minutes Insulation when tested to BS 476 parts 20/22:1987

Assessments IFCC

Fields of Application covering ceiling systems, widths and installation requirements

Classifications

Tested to BS 476 parts 6 and 7 – Pass (propagation and surface spread of flame)

Dimensions & Packaging

Width: 130cm

Roll Length: 6 linear metres

Roll Area: 7.8 sqm

Packed: Concertinaed and individually wrapped in polythene

Weight: 2.2kg/m2 minimum

Product Data Sheet Links
FIREFLY Apollo Horizontal Data Sheet
FIREFLY Apollo Horizontal Material Safety Data Sheet
FIREFLY Apollo Horizontal IFC Certification
FIREFLY Apollo Horizontal Product Summary
FIREFLY Apollo Horizontal Ancillaries & Fixings

The above information is based on current test data, health and safety information and application instructions supplied by our suppliers and manufacturers of the products. It is supplied for guidance and to the best of our knowledge is true and accurate. Customers should satisfy themselves to the suitability of the products in its intended use and no guarantee is given or implied as the conditions of actual use are beyond our control. If in doubt the customer should consult the designer of the project or the local building control.

Fire Stopping Shop, disclaim any liability for loss, damage or other expense which may arise from the use of this information, data or products refereed to and reserve the right to amend or change any details without notice. This statement does not affect your statuary rights.
