127cm x 6m. Integrity and Insulation 120:60 minutes is a non rigid fire barrier designed to provide compartmentation of larger concealed spaces (extensive cavities) within a building.

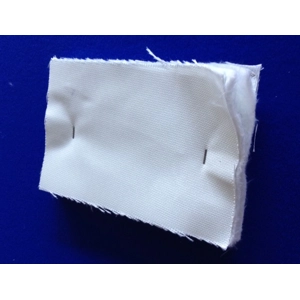

By offering 120 minutes integrity and 60 minutes insulation, TITAN LITE 120:60 exceeds the minimum requirements relating to Cavity Barriers as detailed in the UK Building Regulations: Approved Document B (Fire Safety). FIREFLY is manufactured using specially treated woven glass fibre fabrics. FIREFLY TITAN LITE is lightweight and easy to install.

Description

Lightweight, non rigid Fire Barrier - Combined Insulation and Integrity

Certification

Third Party Certified by IFCC. Certificate number: IFCC 1463

Application

Vertical - 3 layer staggered system

Properties

Description: Non-toxic / user friendly / flexible / durable

Easy to manipulate and cut to shape

Colour: White

Coating: A chemical treatment to optimise thermal properties and help prevent fibre migration

Minimum Thickness: 18mm

Specifications

Vertical: Exceeds 120 minutes integrity with 60 minutes insulation when tested to BS 476 parts 20/22: 1987 Exova test reference number 400699*

*Tested at Exova Warringtonfire. Satisfies the requirements of UK Building Regulations: Approved Document B (Fire Safety) for fire IMO Resolution MSC.61(67) Part 1. Non Combustibility

Assessment

IFCC Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements

Classifications

LPCB Non Combustible

WIRA BS476 part 7 Surface spread of Flame Certification to Class 1 Pass

WIRA Tested to BS476 parts 6 and 7 pass

Dimensions & Packaging

Width: 127cm

Roll Length: 6 linear metres

Roll Area: 7.62 square metres

Packed: Concertinaed and individually wrapped in polythene

Minimum Weight: 4.2 kg / m2

Data Sheets

Firefly Titan Lite Data Sheet
Firefly Titan Lite Safety Data Sheet
Firefly Titan Lite Fields Of Application
Firefly Titan Lite IFC Certification
Firefly Product Summary

Installation Drawings
Firefly Titan Lite General-Assembly
Firefly Titan Lite Side Fixing
Firefly Titan Lite Top Fix Timber Truss
Firefly Titan Lite Tmber Penetrations

Contact Us
If you require further information, please contact us on 024 76422200


All FIREFLY products must be installed in compliance with the FIREFLY Installation Guide, which is provided upon request. Deviation from these drawings should not be carried out without written authority from the FIREFLY™ Technical Department.

All figures quoted are nominal, believed to be true at the time of printing and are presented without guarantee. It is up to the user to determine the suitability of use.

This product is undergoing continuous further testing and assessment for fixing into steel and timber. This will also allow for certification in both the vertical and horizontal planes.
