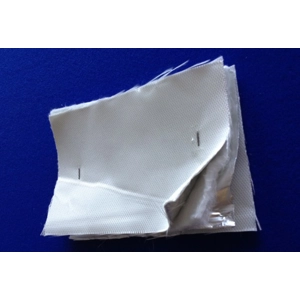

127cm x 6m. Integrity and Insulation 90:30 minutes is a non-rigid fire barrier designed to provide compartmentation of larger concealed spaces (extensive cavities) within a building.

By offering 90 minutes integrity and 30 minutes insulation, ZEUS LITE 90:30 exceeds the minimum requirements relating to Cavity Barriers as detailed in the UK Building Regulations: Approved Document B (Fire Safety). FIREFLY is manufactured using specially treated woven glass fibre fabrics. FIREFLY ZEUS LITE is lightweight and easy to install.

DESCRIPTION

Lightweight, non rigid Fire Barrier - Combined Insulation and Integrity

CERTIFICATION

Third Party Certified by IFCC. Certificate number: IFCC 1461

APPLICATION:  Vertical

PROPERTIES

Description: Non-toxic / user friendly / flexible / durable

Easy to manipulate and cut to shape

Colour: White / Black

Coating: A chemical treatment to optimise thermal properties and help prevent fibre migration

Minimum Thickness: 6mm

SPECIFICATIONS

Vertical: Exceeds 90 minutes integrity with 30 minutes insulation when tested to BS 476 parts 20/22: 1987 Exova test reference number 402913*

*Tested at Exova Warringtonfire. Satisfies the requirements of UK Building Regulations: Approved Document B (Fire Safety) for fire IMO Resolution MSC.61(67) Part 1. Non Combustibility

ASSESSMENT

IFCC Fields of Application covering extended drops, penetrations, ceiling systems, widths and installation requirements

CLASSIFICATIONS

LPCB Non Combustible

WIRA BS476 part 7 Surface spread of Flame Certification to Class 1 Pass

WIRA Tested to BS476 parts 6 and 7 pass

SOUND REDUCTION INDEX

14dB As a stand alone product

44dB When installed in conjunction with a mineral fibre type ceiling

DIMENSIONS AND PACKAGING

Width: 127cm

Roll Length: 6 linear metres

Roll Area: 7.62 square metres

Packed: Concertinaed and individually wrapped in polythene

Minimum Weight: 1.44 kg / m2

Data Sheets
Firefly Zeus Data Sheet
Firefly Zeus Safety Data Sheet
Firefly Zeus Fields Of Application
Firefly Zeus IFC Certification
Firefly Product Summary

Contact Us

If you require further information, please contact us on 024 76422200



FIREFLY All FIREFLY products must be installed in compliance with the FIREFLY Installation Guide, which is provided upon request. Deviation from these drawings should not be carried out without written authority from the FIREFLY Technical Department.
