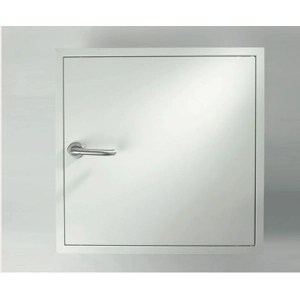

Heavy duty Steel access panel, fire rated up to 120 mins to be installed within a FIREFLY fire barrier system

CERTIFICATION

Third party certified by IFC as part of a FIREFLY fire barrier system

FIRE RATING

600x600mm: 120 minutes fire rated to Heating and Pressure conditions of EN1363-1

1200x600mm: 60 minutes fire rated to Heating and Pressure conditions of EN1363-1

900x600mm: 60 minutes fire rated to Heating and Pressure conditions of EN1363-1 (under test)

APPLICATION

Vertical Installation to provide access as part of a FIREFLY fire barrier system

PROPERTIES

Description: Zintec coated 1.0 – 1.2mm electro-galvanised steel frame and panel, steel hardware, flexible FIREFLYTM fire barrier pillow

Colour: White RAL 9010, 30% gloss

DIMENSIONS

Frame: 25mm width, Zintec steel

Door: 600 x 600mm, Zintec steel

Door: 1200 x 600mm, Zintec steel

Door: 900 x 600mm, Zintec steel (please enquire)

PACKAGING

Supplied as single access panel unit including door panel, frame, lock, hinge, intumescent perimeter seal and fire barrier pillow to door rear. Unistrut and fixings not provided.

Dual lockable handles are fitted as standard but can be supplied without handles and a standard turnkey closure instead if required.

KEY BENEFITS

• Up to 120 minutes fire integrity tested against EN 1363-1: 2020, offers parity of performance with the fire system around it
• Heavy duty Zintec steel fire-rated frame and door, designed to fit within a wider FIREFLY fire barrier installation
• Secure, robust and repeatable access point within compartmentalised spaces without compromising fire performance
• Mechanical closure via 3 point locking mechanism and locakable dual handles, fixed pivot hinge to provide enhanced fire performance from both sides
• Panels can be suppled without handles but with a standard turnkey instead if required
• Supplied as a complete kit, including a FIREFLY fire pillow fitted to the rear of the door, and intumescent perimeter seal, to ensure simplicity of installation into a unistrut frame
• Access Panel frame and unistrut outerframe are additionally wrapped and protected in the same flexible FIREFLY barrier onsite to offer consistent levels of protection to all parts of the installation
• Tested up to 1200 x 600mm

Product Data Sheets

Firefly Access Panel FR120 Data Sheet
Firefly Access Panel FR120 Fitting Instructions
Firefly Access Panel FR120 Door Handle Installation


For more information please call 02476422200 or email sales@fpcl.co.uk
